Graphite

Graphite flakes bridge across fractures and high-permeability pore throats due to their plate-like morphology. The overlapping flakes create a physically interlocked mat that seals the loss pathway. In LCM blends, graphite flake is used in combination with granular and fibrous materials to provide complementary sealing mechanisms across different fracture geometries.

Graphite is one of the most thermally stable carbon forms, with a melting/sublimation point above 3,000°C in inert atmosphere. Under oilfield HPHT conditions (up to 250°C and 20,000 psi), graphite maintains its structure, lubricity, and LCM performance without degradation, making it more reliable than organic lubricants that degrade at elevated temperatures.

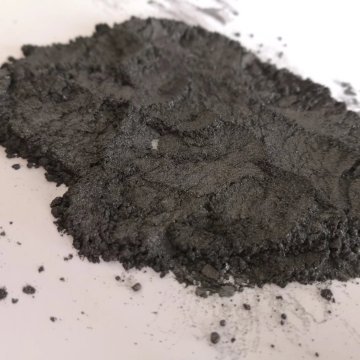

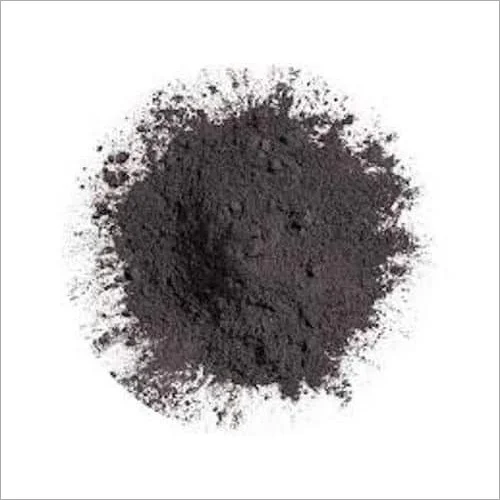

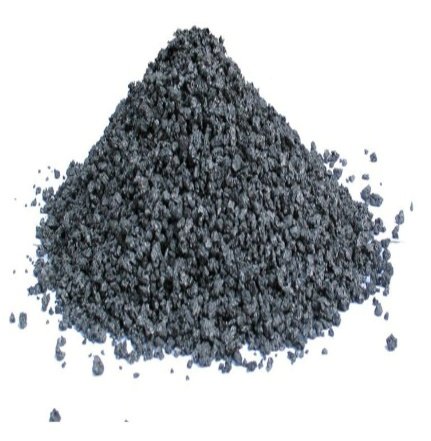

Natural flake graphite retains the layered plate-like crystal structure that provides both mechanical LCM bridging and lubrication. Micronised powder is ground to ultra-fine sizes, maximising lubrication surface area and enabling penetration into micro-fractures, but with reduced mechanical bridging capability. Coarser flake grades are used for LCM; finer grades for lubrication and cementing.

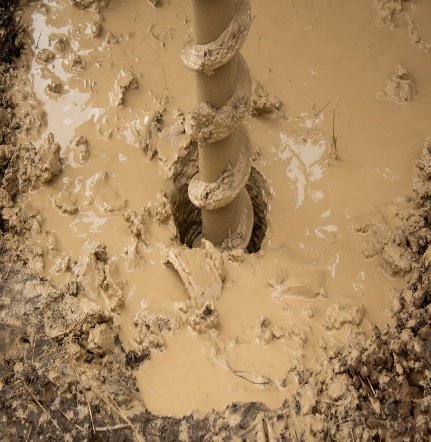

Yes. Micronised graphite powder is used in well cementing slurries as a lubrication aid to reduce slurry friction during pumping, improving rheology and reducing pump pressure requirements. It also provides some fluid loss control in the cement slurry and improves cement ductility under cyclic loading conditions.

Graphite is electrically conductive, which can affect resistivity-based formation evaluation measurements (electromagnetic MWD/LWD tools) when graphite concentrations alter mud resistivity significantly. This should be considered in wells where resistivity LWD is planned. Graphite is generally used at low concentrations (5–20 ppb) where this effect is minimal.
